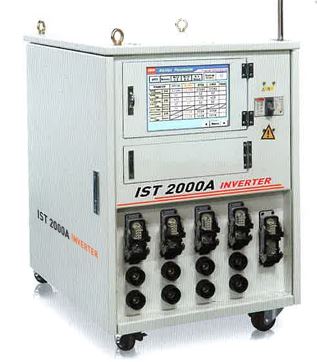

IST-2000A
페이지 정보
작성자최고관리자 댓글 0건 조회 19회 작성일 24-12-24 15:02본문
-Feature(특징)
Touch Color Screen |
All Color Screen & Easy Operation(칼라 스크린과 쉬운동작) |
Control Method |
PWM for IGBT(펄스폭 변조 제어) |
32EA, Heat Program |
Welding Heat Process of 32EA, Parameter(32개, 용접프로그램) |
2EA, Possible Outputs |
Max 4EA, Output (Option)(출구 2EA, 4EA시 옵션) |
Diagnostics |
Flow Alarm, History Alarm Storage(알람기능 저장) |
Polarity |
Be able to Forward Backward Polarity eath Weld Outputs(정, 역극성 변화) |
Possible Same Time Welding |
20msec Delayed Step by Step Welding(20MSEC 지연 연속용접) |
Welding Data Storage |
Function of Logging Welding Data Storage(용접 후 데이터 저장) |
-Specification(사양)
Rated Input Volt | AC 440V, Φ3(170KVA) |
Rated Frequency |
50/60Hz |
No Load Volt |
DC 110V |
Main Current |
0~2,000 [Ampare] |
Main Time |
0-100 [msec] |
Pilot Current |
0-200 [Ampare] |
Pilot Time |
0-100 [msec] |
AET Time |
0-20 [msec] |
Cooling |
Heat Exchange |
| Insulation | H-Class |
Dimension |
570(W) X 850(H) X 675(D) |
Weight |
Approx 155(kg) |
