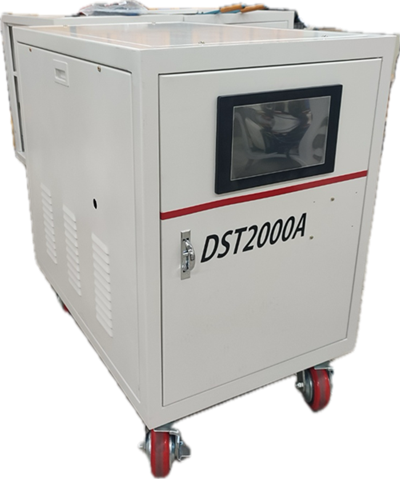

DST-2000A - Robotic Studwelding System
-Feature(특징)
-Color Touch Screen: Weld Parameter Setup and Weld Data Monitoring & Record -Microprocessor Control: 16bit
-Weld Output: 2 Outlets
-Weld Program: 16 Program [Each Outlet]
-Diagnosis: Save alarm and error history.
-Electrode Polarity: Positive & Negative Polarity Welding can be performed
according to robot control.
-Current Feedback Control: Ensure welding quality with overcurrent and low current control
-Specifications(사양)
Rated Input Voltage |
AC 3Φ 220V, 380V, 440V [ Tap change] |
Rated Frequency |
50/60 [Hz] |
No Load Voltage |
DC 81 [V] |
Maxmum input |
100 (KVA) |
Output Current |
200-2000 [A] [Step by Step '1'A] |
Output Time |
0-2000 (msce] [Step by Step '1'mSec] |
Interface Voltage |
DC 24V, Internal |
Stud Range by Weld Base Dia |
Short Cycle-Φ3-Φ14 (M5, M6, W-TOP EARTH) |
Duty Cycle |
25% [Maximum] |
Cooling |
Fan |
Dimension |
570 [W] X 900[H] X 750[D] |
Weight Approx |
180 (Kg) |
